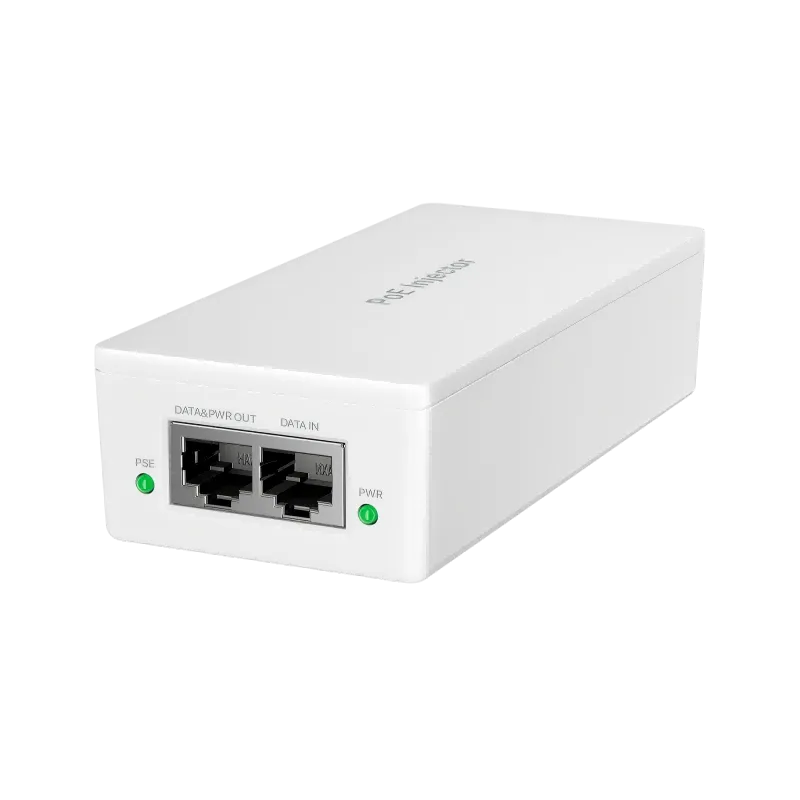

Tenda PoE30G-AT PoE Injector 30W

The Tenda PoE30G-AT is the IEEE802.3 AT Gigabit PoE injector, which fully conforms to the standard of wtih 802.3, transmitting power through Ethernet cable, the maximum transmission distance can reach 100 meters. The PoE injector has two Ethernet gigabit data ports and an output port combination of data and power.

Operating Temperature	0℃~45℃
Input Voltage	100－240V AC 50/60Hz, 51V/0.8A DC（Power Adapter Output）
Transmission Rate	1000Mbps
LED Indicator	PWR, PoE
Certification	FCC、CE 、RoHS、UL
Storage Temperature	-40℃~70℃
Operating Humidity	10%~90% non-condensing
Storage Humidity	5%~90% non-condensing
Network standards	IEEE802.3、 IEEE802.3u 、IEEE802.3ab、IEEE802.3af、 IEEE802.3at
Interfaces	1*10/100/1000 Base-T Ethernet Port(Data/PoE), 1*10/100/1000 Base-T Ethernet Port(Data)
Transmission media	Recommended: CAT5/5e UTP or better
Dimension	132.3mm*60mm*33mm
Level of protection	ESD:, Air discharge: ±10kV, Contact discharge: ±8kV
Forwarding mode	Store-and-forward
Power consumption	30W
Mounting	Desktop mounting: support
Air discharge	±10kV
Contact discharge	±8kV
Single port	AF: 15.4W, AT: 30W
Whole device	30W
