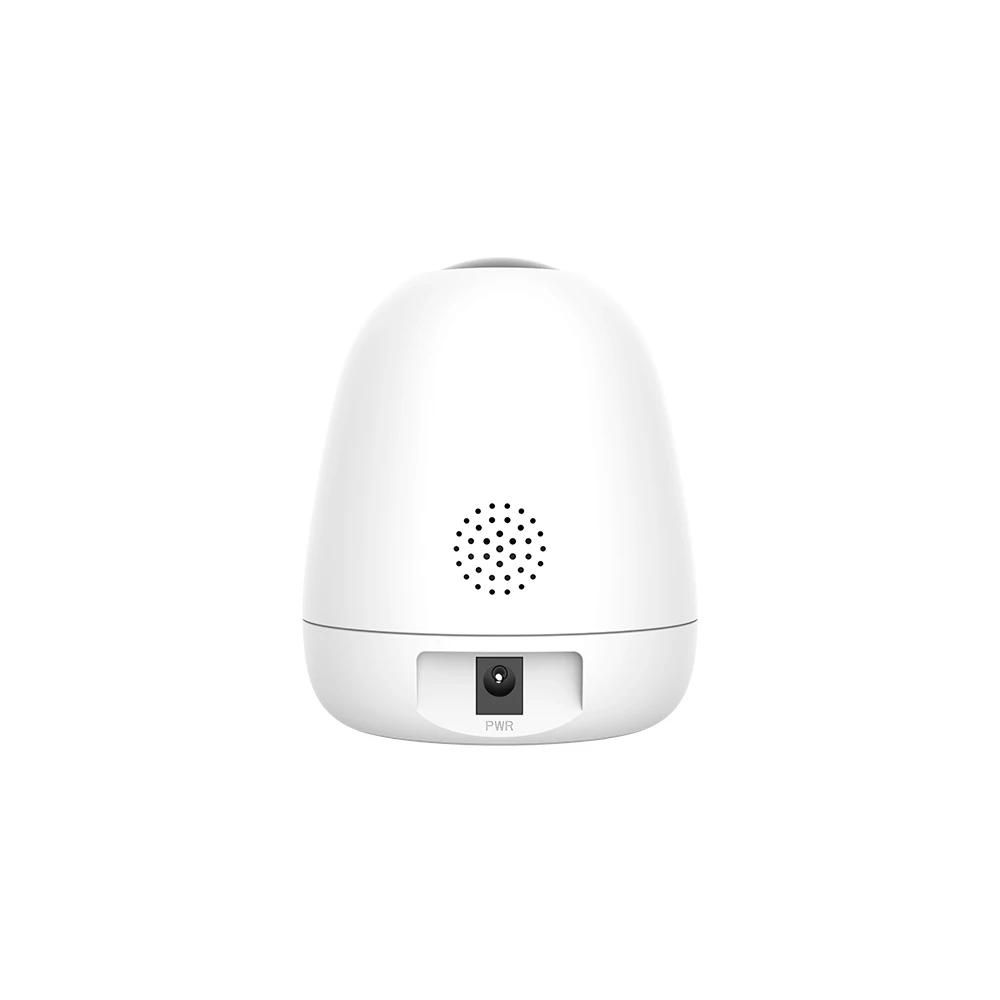

Tenda CP3 V2.2 1080P Security Pan/Tilt Camera

The security Pan/Tilt Camera-CP3, is a high-performance home surveillance camera that integrates 360° visual coverage with 1080p resolution. It is also featured with full-duplex two-way audio, smart-motion detection/tracking, sound and light alarm functions. The product is mostly used for indoor scenarios monitoring such as homes, shops, offices and classrooms, etc.

Package Contents	Camera, Power Adapter (cord length: 3m), Installation Template, Mounting Bracket, Mounting Accessories Kit, Quick Installation Guide
Operating Temperature	-10°C ~ 45°C (14°F ~ 113°F)
Material	Plastic
Image Sensor	1/3 Progressive Scan CMOS sensor
Day and Night	ICR type
Focal Length	4mm
Aperture	F2.2
FOV	Horizontal : 79.4°, Vertical : 48°, Diagonal : 87°
Supplementary Light	4 IR Lights
Supplementary Light Distance	Up to 10 m/32 ft (depending on environment)
IR Wavelength	850nm
Night Vision Mode	Black & White Mode
Video Encoding Format	H.264
Main Stream Resolution	1920 × 1080, 1280 × 720
Sub Stream Resolution	640 x 360
Frame Rate	1-15fps,Default 15fps
Bit Rate	256kbps -- 8192kbps
Bit Rate Control	VBR
Audio Encoding Format	G.711A
Audio Sampling Rate	8 kHz
Audio Communication	Two-way Audio
Image Enhancement	DWDR, 3D DNR
ONVIF	Support
Protocols	TCP/IP, UDP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP
Pan Movement Range	0°--355°
Tilt Movement Range	-65°--90°
Preset	6
Patrol	Panoramic Patrol, Preset Patrol
Antenna	Internal antenna
Wireless Standard	IEEE 802.11 b/g/n
Transmission Rate	Up to 144Mbps
Channel Width	20 MHz
Modulation	DSSS/OFDM
Frequency Band	2.4GHz: 2412MHz-2472MHz(CH1-CH13)
Transmit Power	2.4GHz: <0.062W(EIRP)
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Smart Detection	Motion Detection, Human Detection
Smart Linkage	Sound&light Alert, Human Tracking
DIY Audio	3 Customized Audios
Audio Input	Built-in MIC
Audio Output	Built-in Speaker
Storage	Built-in Micro SD Card Slot, Up to 256 GB
Reset Button	Support
LED Indicator	Dual Color (red & blue), LED Indicator
Power	9V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug
Smart Integration	Amazon Alexa
Product Dimension	103mm x 88mm x 88mm (4.1'' ×3.5'' × 3.5'')
Package Dimension	100mm x 100mm x 165mm (4.0'' ×4.0'' × 6.5'')
Product Weight	206g (0.46lb)
With Package Weight	390g (0.86lb)
Installation Method	Desktop, Ceiling Mounting
Certification	CE, RoHS, FCC, RCM, UKCA
Storage Temperature	-40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity	10% ~ 95% RH (non-condensing)
Storage Humidity	3% ~ 95% RH (non-condensing)
